CARATTERISTICHE
Revitalize Productive Collaboration

QBH-TR e-boards offer a versatile, all-in-one arena for improved collaboration. Enhanced touch technology, the intuitive MagicIWB S5 solution and UHD picture quality come together to boost productivity and collaboration by facilitating engaging, efficient interaction.
Enhance Touch, Enhance Capacity

Leverage heightened touch functionality for a smooth and versatile digital writing experience. Up to four users can write simultaneously using the provided pen or virtually any other tool.
Elevate Collaboration Quality

The embedded MagicIWB S5 solution facilitates discussion management and organization with an intuitive interface for quick access to vital collaborative functionalities such as screen mirroring and real-time notation saving.
Switch Sources Seamlessly

Through the Working Screen function, users can quickly switch between multiple screens, such as the whiteboard, internet browser and connected input sources, with just a few touches.

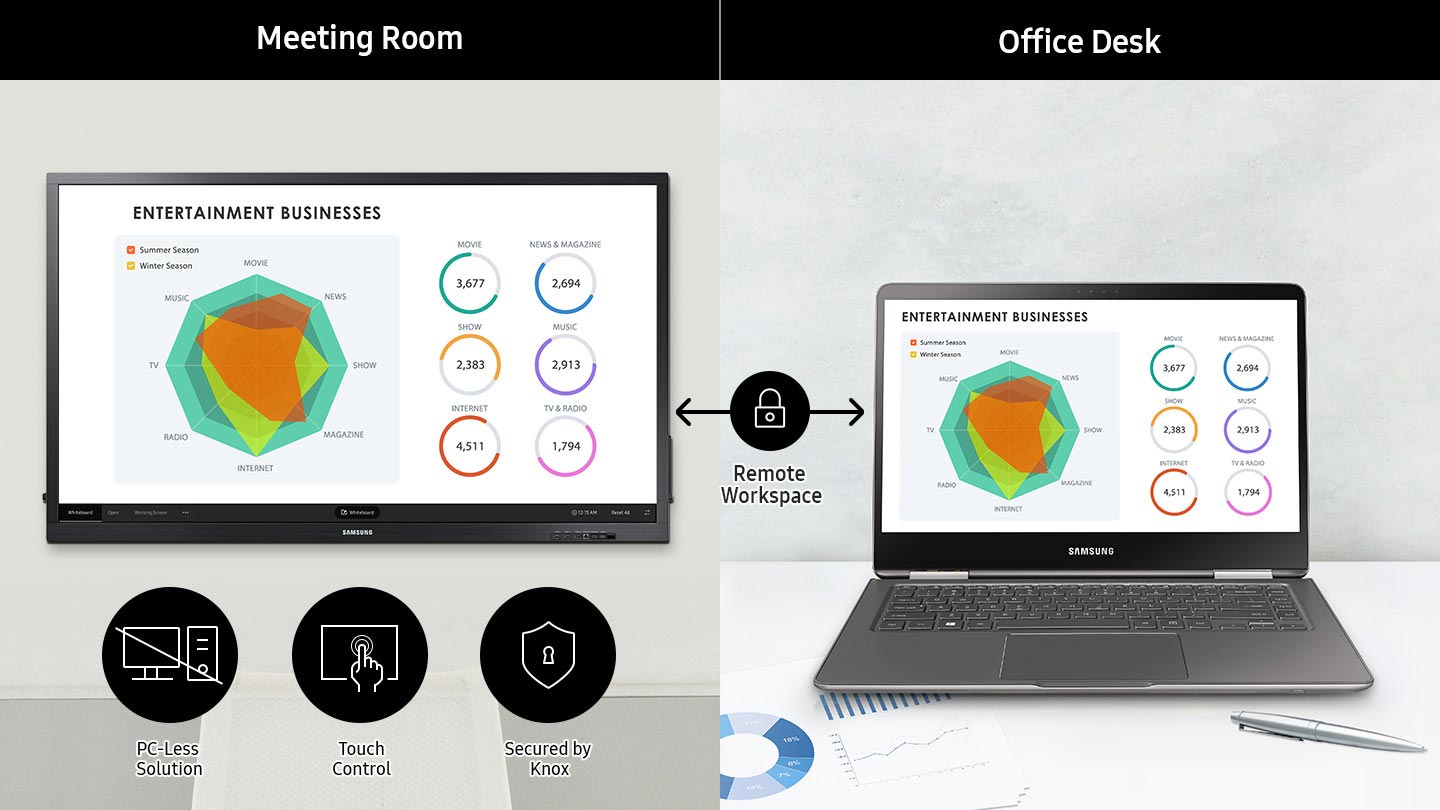

Retrieve and Control Content Remotely

Pull and edit content on remote laptops directly through the central screen utilizing touch functionality. The powerful Knox system secures the Remote Workspace connection to protect against information leakage and meddling.

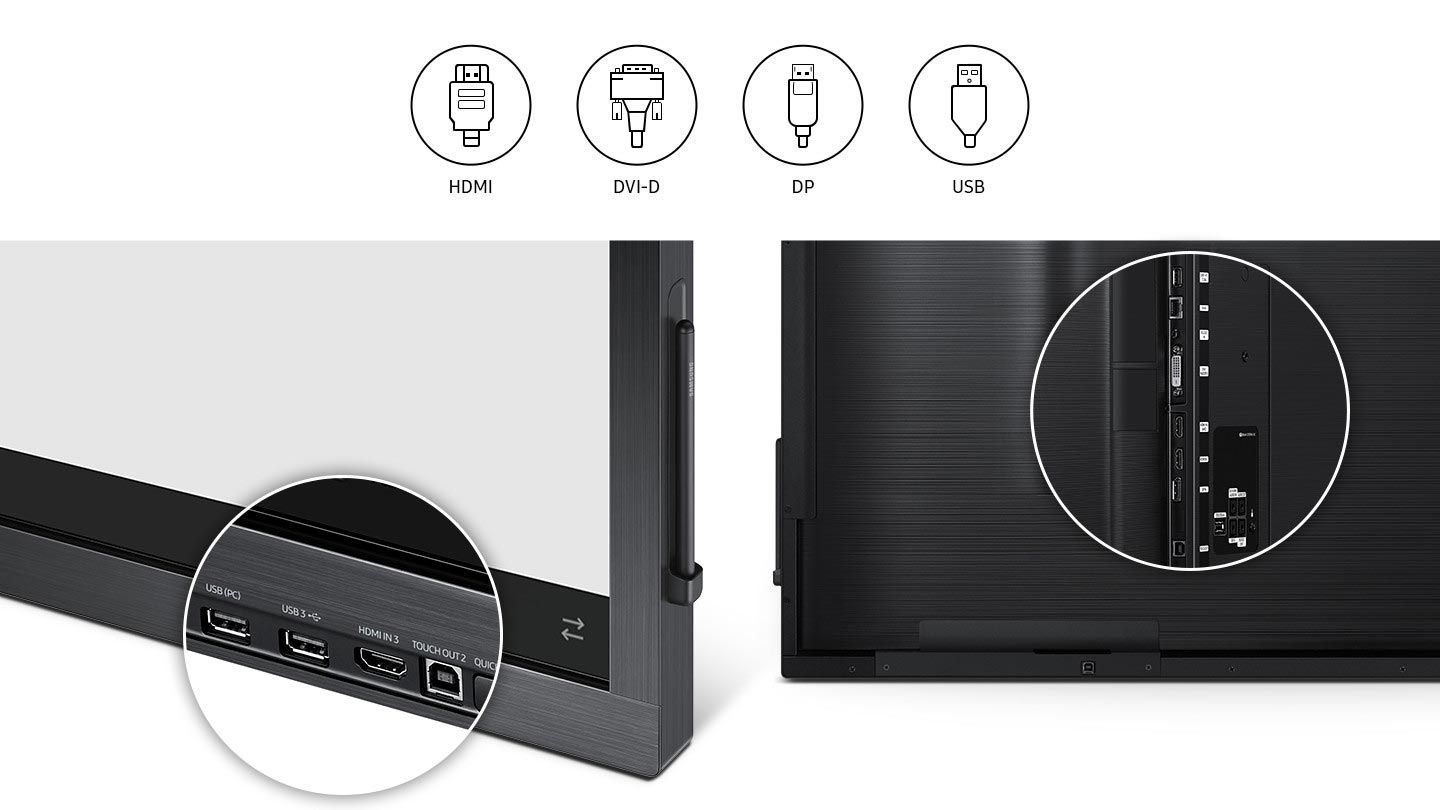

Connect with Convenience

Each e-board offers a wide range of connections including HDMI, DVI-D, DP and USB ports, where users can load, share and revise content directly from their personal devices.

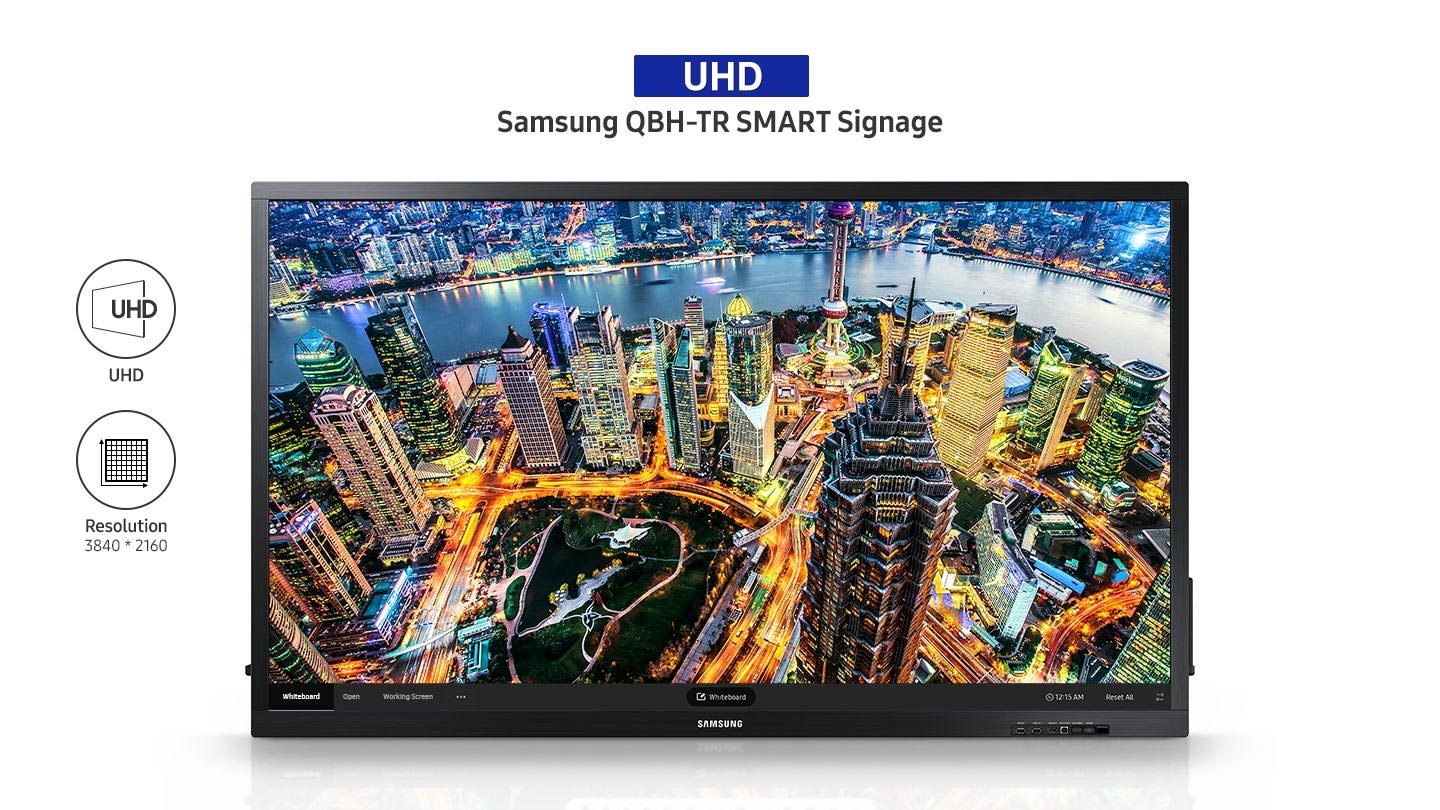

Amplify Visual Presentation

Bring collaborative ideas to life through advanced UHD picture quality. Through ultra-high resolution, ensure all notations and introduced content are clear and legible for every participant.

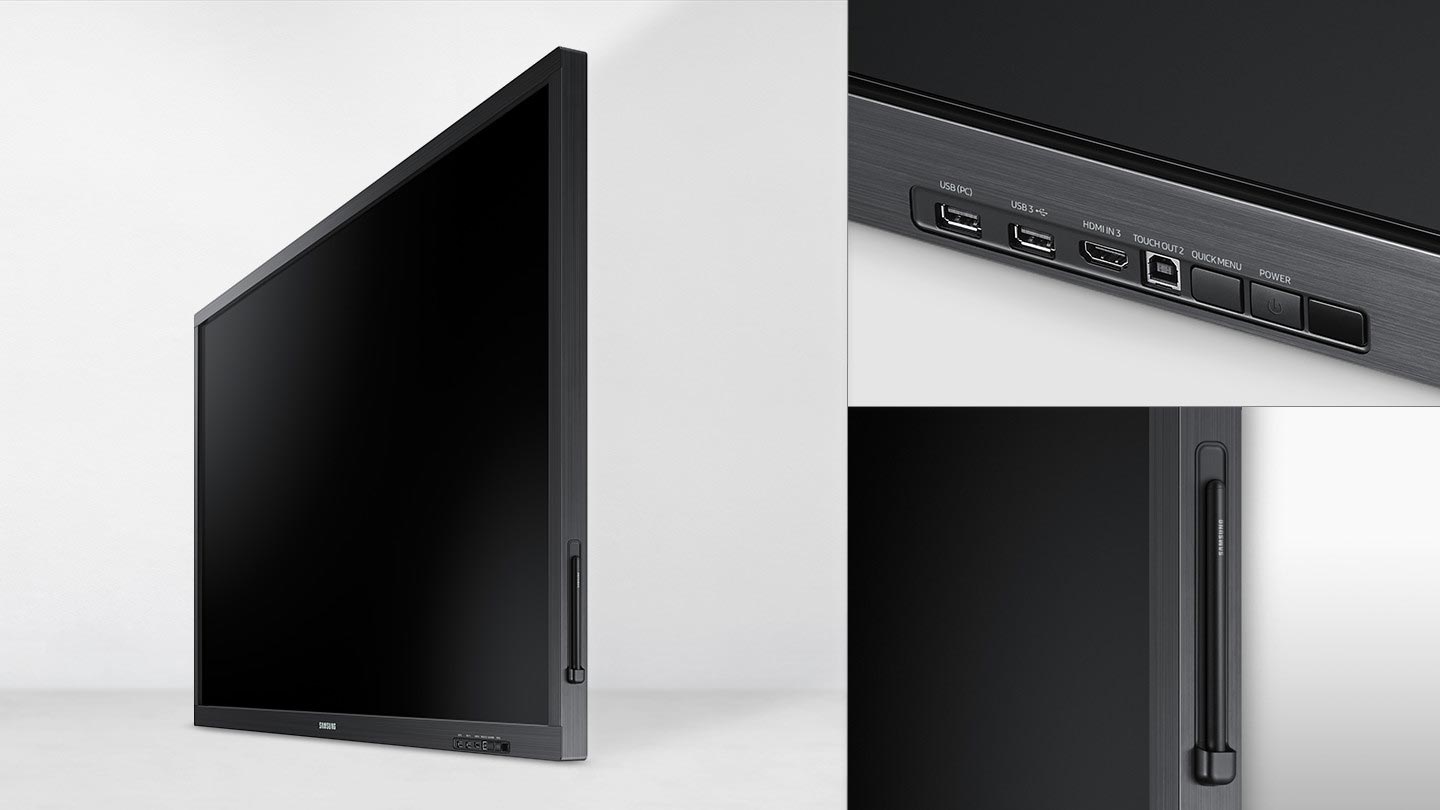

Maintain Organization with Style

Drive more organized collaboration with a sleek, sophisticated design. The magnetic side pen holder and frontal connection ports keep needed functions within reach, without the mess.
SPECIFICHE
Panel | Diagonal Size 65" |
Type 60Hz E-LED |
Resolution 3840*2160 (4K UHD) |
Pixel Pitch(mm) N/A |
Active Display Area(mm) N/A |
Brightness(Typ.) 300 nit |
|
Contrast Ratio Mega |
Viewing Angle(H/V) 178/178 |
Response Time(G-to-G) 8ms |
|
Display Colors N/A |
Color Gamut N/A |
Haze N/A |
Display | Dynamic C/R N/A |
H-Scanning Frequency N/A |
V-Scanning Frequency N/A |
Maximum Pixel Frequency N/A |
Sound | Speaker Type Built in Speaker (10W x 2) (Down Firing w/Bass Reflex) |
Connectivity | Input RGB - |
Input Video HDMI Rear1, HDMI Rear2 (ver 2.0), HDMI Front3 (ver 1.4), DVI-D, DP |
Input HDCP N/A |
Input Audio - |
Input USB USB 1, 2 (Rear) USB 3 (Front), PC USB (Front) |
Output RGB, Video - , - |
Touch Out Touch Out 1 (Rear), Touch Out 2 (Front) |
Output Audio Audio |
|
Output Power Out N/A |
Output External Control RS232C(in/out), thru stereo jack, RJ45, Wi-fi |
Output External Sensor IR Sensor (display control) |
Output Tuner N/A |
Sound | Speaker Type Built in Speaker (10W x 2) (Down Firing w/Bass Reflex) |
Touch | Type IR (Infra Red) |
# of Drawing 4 drawing (SoC), 10 drawing (External Windows PC) |
Touch Pen Type Passive Pen |
Object Recognition Range 8mm |
Touch Response Time TBD |
Power | Type Internal |
Power Supply AC 100~240 V 50/60 Hz |
Power Consumption Max[W/h] N/A |
Power Consumption Typical[W/h] N/A |
Power Consumption BTU(Max) N/A |
Power Consumption Sleep mode N/A |
Power Consumption Off mode N/A |
Power Consumption Energy-saving[W/h], Typical[W/h], TBD |
Mechanical Specification | Dimension (mm) Set 1514.7 x 882.4 x 58.2 |
Dimension (mm) Package 1619 x 231 x 1001 |
Weight (kg) Set 39.2 |
Weight (kg) Package 48.0 |
VESA Mount (mm) 400x400 |
Mounting Hole, Bezel Width (mm) N/A, N/A |
Protection Glass Yes |
Stand Type Wall Mount |
|
Media Player Option Type N/A |
Accessory Pen Holder |
Color Black |
Power Cable Length 1.8m |
Operation | Recommended Usage Hours 16/7 |
Operating Temperature 0.0 ℃ ~ 40.0 ℃ |
Humidity 10.0 % ~ 80.0 % |
Feature | Key Features Slim & Light LFD with Built-in MagicInfo Player S5, SSSP |
Special Features H/W:Super Clear Coating, Temperature Sensor, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded S/W:MagicIWB S5 |
Internal Player | Processor Coretex A72 1.7GHz Quad-Core CPU |
On-Chip Cache Memory L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB |
Clock Speed 1.7GHz Quad-Core CPU |
Main Memory Interface 3GB 3ch 64bit LPDDR4 1.6GHz |
Graphics 2D & 3D Graphic Accelerator Data Format : 32bpp Output resolution : 3840x2160p |
Storage (FDM) 8GB (3.88GB Occupied by O/S, 4.12GB Available) |
|
Multimedia Video Decoder - MPEG 1/2/4, H.263, H.264/AVC - UHD H.264/AVC, VC-1, AVS/AVS+, MVC - VP8, VP9, HEVC, JPEG Audio DSP(Decoder) - MPEG, AC3, AC4, DD, MP3 and etc |
IO Ports USB 2.0 |
Operating System Tizen 3.0 (VDLinux) |
Certification | Safety N/A |
EMC N/A |
Accessory | Included Passive Pen, Power Cable |
|
Media Player | Media Player N/A |
